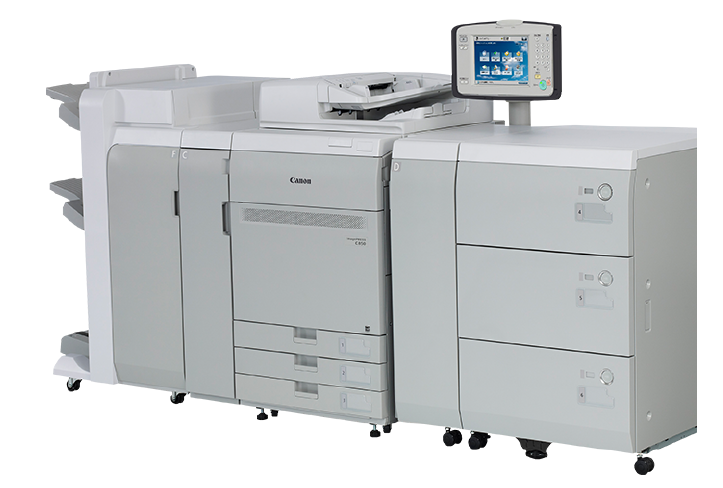

Equipment used as a large printer capable of handling industrial printing volumes, while the material that can be used are various such as normal paper, drawing paper, cardboard, film or cloth.The imagePRESS C850 digital color production press offers end-users outstanding quality, productivity, and versatility in a compact, scalable footprint. Designed for small-to-medium commercial, franchise, in-plant, transactional and quick printers, the imagePRESS C850 is equipped to handle a variety of media options up to 110 lb. Cover and validated heavier stocks up to 130 lb. Cover, including heavy, coated, textured stock and envelopes at an outstanding level of reliability and performance.Built upon the successful imagePRESS C800 Series platform, the imagePRESS C850 offers users even more capabilities, ease of use, and productivity.

Features:

New Capabilities:

    Fast turnaround with print speeds of up to 85 letter images per minute (Color and B&W)

    Duplex long sheet printing of up to 30 inches for new applications*

    In-line finishing options:

        Multi Function Professional Puncher for die punching and creasing

        Booklet Trimmer with continuous run capability

    Faster, Simple Registration Adjustment

    PRISMAsync Color Print Server V5 for flexibility in achieving amazing print quality:

        Realistic previews on the user interface

        Flexible color corrections

        Digital Moiré Reduction

Proven imagePRESS technologies:

    Unique imagePRESS Gloss Optimization to help match the gloss level of the toner image to that of the paper used for offset-like quality

    Advanced Twin Belt Fusing enables efficient belt heating and quick cooling for Gloss Optimization and fast print speeds

    CV Toner for high-speed output of smooth, vivid, and consistent image quality

    Compact Registration Module helps provide accurate registration in a small footprint, for first time right output

    High definition 2400×2400 dpi print resolution with R-VCSEL Laser Scanner Unit

    Advanced Image Transfer Belt for outstanding quality even on textured surfaces

Included:

Printing speed

A4 90 prints per minute;

A3 50 prints per minute;

SRA3 45 impressions per minute

MRA3 (I3X19) 40 prints per minute minimum

Device Paper Capacity: Up to 1,650 sheets, Maximum: Up to 7,650 sheets (75g Bond)

Paper Weight: 56g Bond to 350g Cover.

Automatic duplex.

Paper handling:

High Volume Feeder

Low  3,500 sheet capacity (70gsm Bond)

From 99.mm x 147.32mm (3.9” x 5.8”) to 330mm x1200mm (13” x 50”) Multi Bypass Tray-B1 Alignment tray for long sheets.

Finishing and Binding Module

Stapling with wire box of 7,000 Staples

Data processor capacity:

Intel processor with a frequency of 3.3 Ghz.

4 GB of RAM memory

OS compatibility: Windows, 7, 8.1 and 10. MacOS 10.9/10.11/10.12 and 10/13. USB connection type. Ethernet DVI Connector and Display Port Post.

Specifications

Print speed

imagePRESS C850: up to 85ppm

Recommended monthly volume

imagePRESS C850: 15,000 – 150,000 pages (A4)

Maximum monthly volume

imagePRESS C850: up to 500,000 pages (A4)

Log Tolerance

Face/Back: 1.0mm or less

Printing method

color laser printing

print resolution

2400 x 2400 dpi, 256 gradations

paper capacity

Standard: 3 x 550-sheet cassette (80 g/m²)

Option: 100-sheet multipurpose tray

POD Lite Deck C1: 1 x 3,500 Sheet Side Deck (A4/A3/SRA3)

POD Lite XL-A1 Deck: 1 x 3,500 sheet side paper feeder (A4/A3/SRA3), 1 x

1,000 sheets with a length > 487.7 mm

Multi-Cassette Paper Deck-C1: 1 x 6,000 sheets (3 x 2,000 sheets: A4/A3/SRA3)

Maximum paper input capacity

7,650 sheets (A4/A3)

Maximum paper output capacity

11,200 sheets (A4, 80 g/m²)

Supported Paper Types
