Brand: TEST

Code: T-014-08

Equipment that is installed in a borehole to control displacements at different depths using bars of different material and length.

Features:

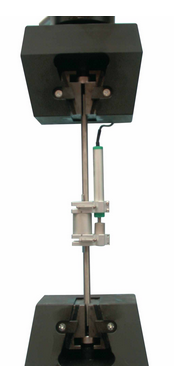

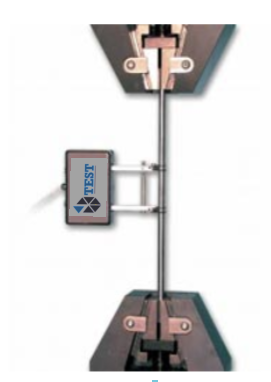

The extensometer is used to take the longitudinal deformation of the specimen during a tensile test.

A load/deformation graph is obtained, and from this graph the coefficient of elasticity, together with the loads RP0.1 – RP0.2 – Rt1, can be identified. This is possible even with materials that are not presenting a clearly identifiable yield point

Includes:

1xExtensometer for round specimens from 18 to 27 mm diameter.Transducer stroke: 50 mm. Supplied complete with connection cables.

1x Calibration with indicator

1x Unit with 8 input channels to install strain transducers.

Full Specifications

Measuring base 50 mm,

Deformation range +1 mm / -0.2 mm

Maximum percent measurable deformation: +2%
